WebSocket

Introduction#

WebSockets revolutionized the web, turning clunky, slow real-time interactions into sleek, low-latency experiences.

WebSocket is a persistent connection between client and server. WebSockets provide a full-duplex communication channel (allows communication in both directions simultaneously) through a single TCP/IP socket connection.

Thanks to WebSocket connection, client-server communication can happen in real-time (unlike HTTP with timings on each request/response), similar to UDP, but with the reliability of TCP. So it is broadly used in chat, gaming, and stock market browser-based applications.

WebSocket starts from a handshake, followed by basic message framing:

Handshake#

A WebSocket connection is established by upgrading an HTTP request.

A client (in most cases, the client means a web browser) that supports WebSocket API and wants to establish a connection should send an HTTP request with WebSocket-specific headers:

The minimum required request looks like this:

GET /socket HTTP/1.1
Host: polkadot.webapi.subscan.io
Connection: keep-alive, upgrade
Upgrade: websocket
Sec-WebSocket-Key: N509hQQwSFGfanhbxP3F6g==
Sec-WebSocket-Version: 13

If everything goes well, the server will answer with «HTTP 101 Switching Protocols» response code with the additional headers:

You can explore WebSocket resources in DevTools and even interact with them in the Console tab through WebSocket API.

Open the WebSocket connection:

const ws = new WebSocket('wss://polkadot.webapi.subscan.io/socket');

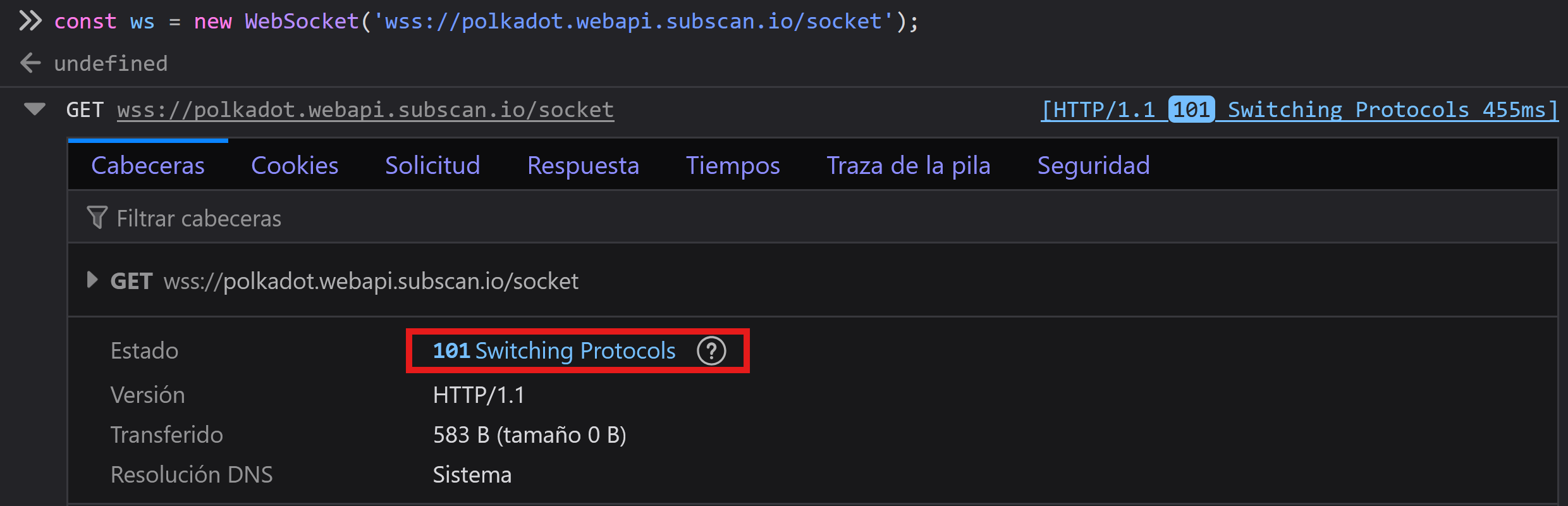

On the Network tab, you can watch the WebSocket connection in action:

After the client gets the server response, the WebSocket connection is open to start transmitting message-based data according to WebSocket Protocol. Without going into details, the «message-based data» means a payload/body (in most cases, it is a text) inside messages between client and server.

ws.onmessage = function (e) { console.log(e.data) };
